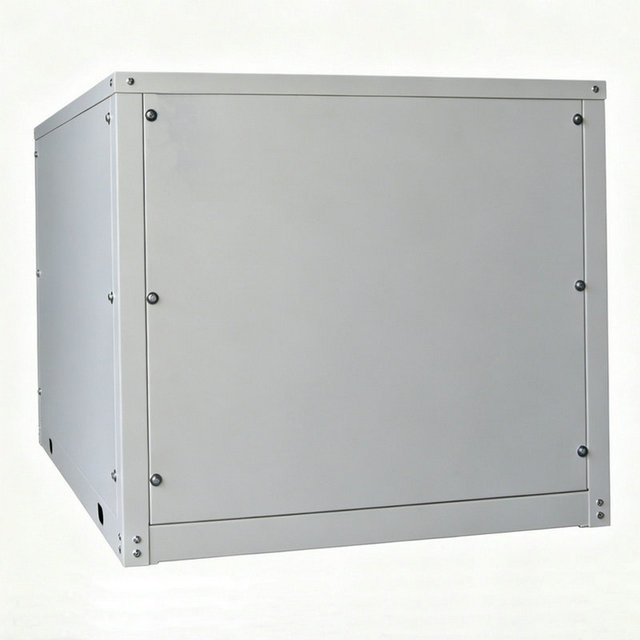

R134A water‑source heat pump, heating capacity: 38 kW

loading

R134A water‑source heat pump, heating capacity: 38 kW R134A water‑source heat pump, heating capacity: 38 kW

loading

R134A water‑source heat pump, heating capacity: 38 kW

Availability:
Water‑source Heat Pump (Refrigerant: R134a), Heating Capacity: 38 kW
  • SFDX-100II

Product Parameters
Model
SFDX‑100II
Ambient temperature range
-7°C ~ 43°C
Rated heating capacity
38 kW
Rated power input
8.6 kW
Max. current
28 A
Power supply / Frequency
3N~ 380 V / 50 Hz
Refrigerant charge
R134a
2200 g ×2
Max. hot‑water outlet temperature
75°C
Water side pressure drop
60 kPa
Circulating water flow rate
6.8 m³/h
Source‑side circulating water flow rate
5 m³/h
Overall dimension
1004 × 788 × 705 mm
Electric shock protection class
Class I
Ingress protection
IPX4
Noise level
≤68 dB(A)
Hot‑water side connection
DN40
Source‑side connection
DN25
Weight
280 kg
Product Description

This is a 38 kW R134a water‑source heat pump unit. Using environmentally‑friendly R134a refrigerant, the unit delivers reliable heating output. It takes water as heat source for heat exchange, featuring high energy efficiency, stable operation and low noise. Widely applied for domestic hot water, building heating and commercial heating systems.
