110 kW Commercial Swimming Pool Heat Pump | ZY-110/SN1-DP


Availability:



Inquire

The ZHIEN ZY-110/SN1-DP is a commercial air-source heat pump for swimming pool heating. At outdoor dry/wet bulb 20/15°C and water inlet/outlet 15/32°C, its rated heating capacity is 110 kW, rated input 21.5 kW and COP 5.1. This catalogue data describes the heating configuration. If your project requires cooling, ask us for the separately specified cooling configuration and its confirmed datasheet.

Model:
ZY-110/SN1-DP
Brand:
ZHIEN

Product Description

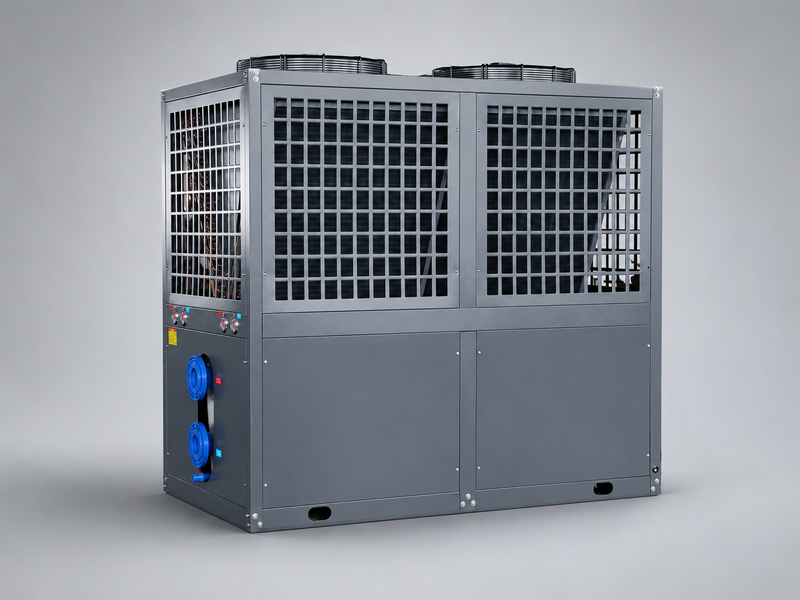

ZY-110/SN1-DP Commercial Swimming Pool Heat Pump

The ZHIEN ZY-110/SN1-DP is a commercial swimming pool heat pump. The following catalogue data describes its heating configuration and applies at the stated test conditions.

Rated Heating Performance and Specifications

Parameter	Published heating configuration
Outdoor dry / wet bulb temperature	20 / 15°C
Water inlet / outlet temperature	15 / 32°C
Rated heating capacity	110 kW
Rated power input	21.5 kW
Heating COP	5.1
Power supply	3N~380V/50Hz
Refrigerant	R410A
Rated water flow	31 m³/h
Maximum outlet water temperature	42°C
Dimensions (L × W × H)	2053 × 1080 × 1286 mm

Select Either a Heating or a Cooling Configuration

A single unit is supplied for either heating or cooling and does not include both functions. Confirm the required configuration before ordering. The published 110 kW capacity and COP 5.1 are heating ratings, not cooling performance.

If your pool project requires cooling, request the cooling configuration's confirmed capacity, power input and operating conditions. For UAE, Saudi Arabia and other export projects, confirm the required voltage, phase, frequency and ambient operating range. The listed version is 380V/50Hz; a 60Hz order requires separately confirmed specifications.

Water Flow and Project Selection

The listed heating configuration has a rated water flow of 31 m³/h. This is equipment water flow, not a recommended pool volume. Share the available circulation flow and system arrangement so the selected configuration can be reviewed for the project.

Also provide pool dimensions, surface area and volume; indoor or outdoor installation; target water temperature; site design ambient conditions; operating season and hours; required initial heat-up or pull-down time; equipment quantity and delivery schedule. Capacity and unit quantity should be selected from these requirements.
