90 kW Commercial Swimming Pool Heat Pump | ZY-90/SN1-DP


Availability:



Inquire

ZY-90/SN1-DP is a commercial air-source heat pump for swimming pool temperature control in hotels, resorts, clubs and large pools. The catalogue lists 90 kW rated heating output at A20/15°C, water 15→32°C. A heating or cooling version is selected when ordering; this page lists heating-version performance only. Send pool volume, target temperature, location and operating hours for model selection.

Model:
ZY-90/SN1-DP
Brand:
ZHIEN

Product Description

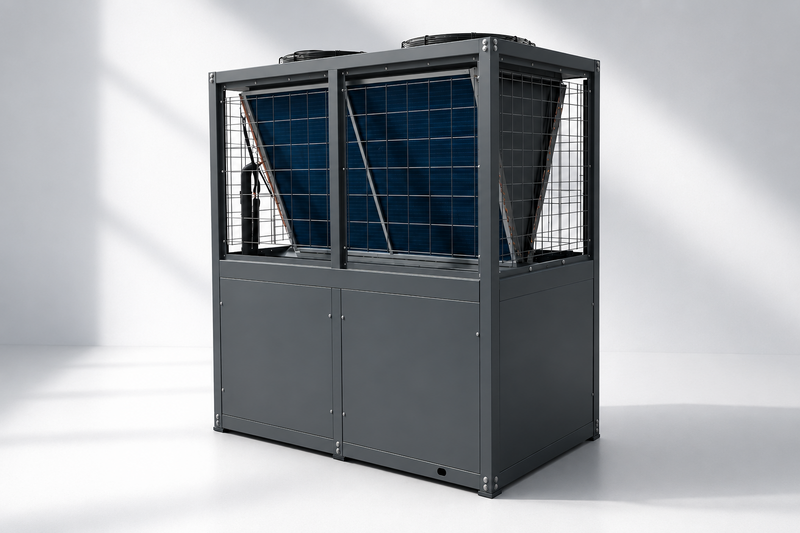

90 kW Commercial Swimming Pool Heat Pump

The ZHIEN ZY-90/SN1-DP is an air-source pool heat pump for hotel, resort, club and commercial swimming pool projects. OEM/ODM supply and project selection support are available for distributors and HVAC contractors.

Order configuration: choose a heating-only version OR a cooling-only version. One unit does not provide both functions. The ratings below describe the heating version only.

Heating-version specifications

Item	Catalogue value
Model	ZY-90/SN1-DP
Rated heating capacity	90 kW
Heating power input / COP	17.7 kW / 5.1
Rating conditions	Outdoor dry/wet bulb 20/15°C; water inlet/outlet 15/32°C
Water flow	25 m³/h
Refrigerant	R410A
Power supply	3N~380V/50Hz
Dimensions	2053 × 1080 × 1286 mm
Maximum outlet water temperature	42°C

Capacity and COP apply only at the stated catalogue conditions. Actual output depends on ambient air and water temperatures. Cooling capacity and any 60 Hz configuration require a separately confirmed technical datasheet.

How to size a heat pump for your pool

Send the pool volume and surface area, indoor or outdoor location, project city, minimum and maximum ambient temperatures, starting and target water temperatures, required heat-up time, daily operating hours and pool-cover use. Our engineers will review the load and recommend the unit quantity and configuration.

Frequently asked questions

Can this unit heat and cool the same pool?
No. Select either the heating-only or cooling-only configuration when ordering. Request cooling performance separately for hot-climate projects.

Is 90 kW suitable for a fixed pool volume?
Pool volume alone is insufficient for selection. Surface heat loss, wind exposure, cover use, climate and heat-up time also affect the required capacity.

What should an OEM or project inquiry include?
Specify the country, quantity, power supply, required function, operating conditions and any branding or control requirements. Confirm the final specification and applicable certificates before ordering.

Request a project selection and quotation

Share your pool data and required heating-only or cooling-only configuration with ZHIEN Sales Team. We can prepare a project-specific selection and quotation.
