ZY-220/SN1-DP
ZHIEN

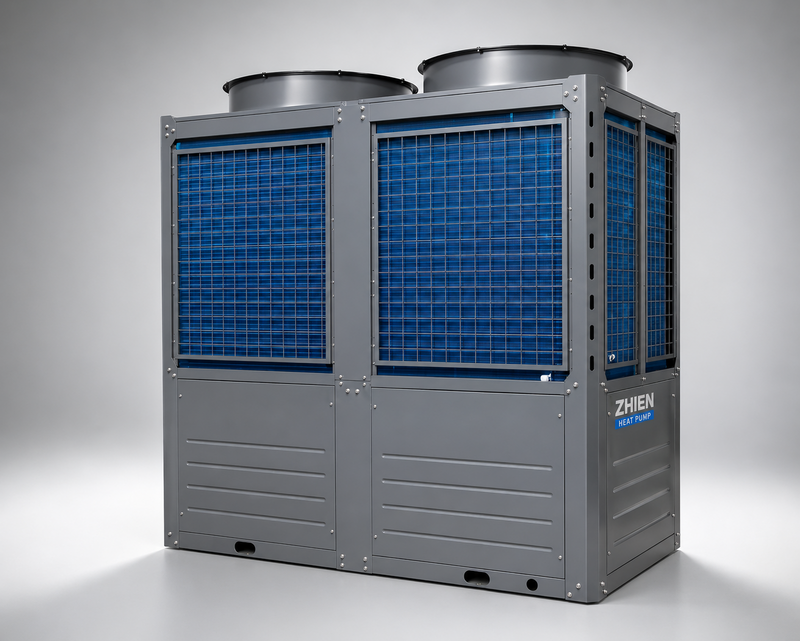

The ZHIEN ZY-220/SN1-DP is a commercial swimming pool heat pump with a rated heating capacity of 220 kW at the test conditions below. Equipment selection for a hotel, leisure facility or commercial pool depends on the actual pool load and site conditions.
Parameter | Published heating configuration |
|---|---|
Outdoor dry / wet bulb temperature | 20 / 15°C |
Water inlet / outlet temperature | 15 / 32°C |
Rated heating capacity | 220 kW |
Rated power input | 43.2 kW |
Heating COP | 5.1 |
Power supply | 3N~380V/50Hz |
Refrigerant | R410A |
Maximum outlet water temperature | 42°C |
Dimensions (L × W × H) | 2251 × 1200 × 2280 mm |
Heating capacity and efficiency apply at the stated test conditions. Performance at other ambient or water temperatures must be checked for the project.
A single unit is supplied for either heating or cooling and does not include both functions. Select the required configuration before ordering. The 220 kW figure above is heating capacity; it must not be used as the cooling capacity.
For a pool cooling project in the UAE, Saudi Arabia or another country, request a separately confirmed cooling datasheet with the required ambient temperature and water temperatures. Confirm the voltage, phase and frequency as well. A 60Hz order requires its own confirmed configuration and performance data.
Heating or cooling duty and target pool water temperature.
Pool dimensions, water volume and surface area.
Indoor or outdoor installation, operating season and daily operating hours.
Site design ambient conditions and any required initial heat-up or pull-down time.
Available circulation flow, power supply and installation constraints.
Project location, quantity and delivery schedule.
View the ZY-110/SN1-DP heating specifications or our full commercial swimming pool heat pump range. Model and unit quantity should be selected from the project requirements.
Explore our Dubai commercial swimming pool reference project, which used ZDC180 equipment, a different model from this listing.
