110 kW Commercial Air Source Heat Pump for Hot Water | ZR-110/SN1-DT


Availability:



Inquire

The ZHIEN ZR-110/SN1-DT is a commercial air-source heat pump for hot water projects. At outdoor dry/wet bulb 20/15°C and water inlet/outlet 15/55°C, it delivers 110 kW with 23.9 kW input and COP 4.6. At outdoor 7/6°C and water 9/55°C, the catalogue rates it at 92 kW with 22.1 kW input and COP 4.15. Confirm sizing for your climate and hot-water demand.

Model:
ZR-110/SN1-DT
Brand:
ZHIEN

Product Description

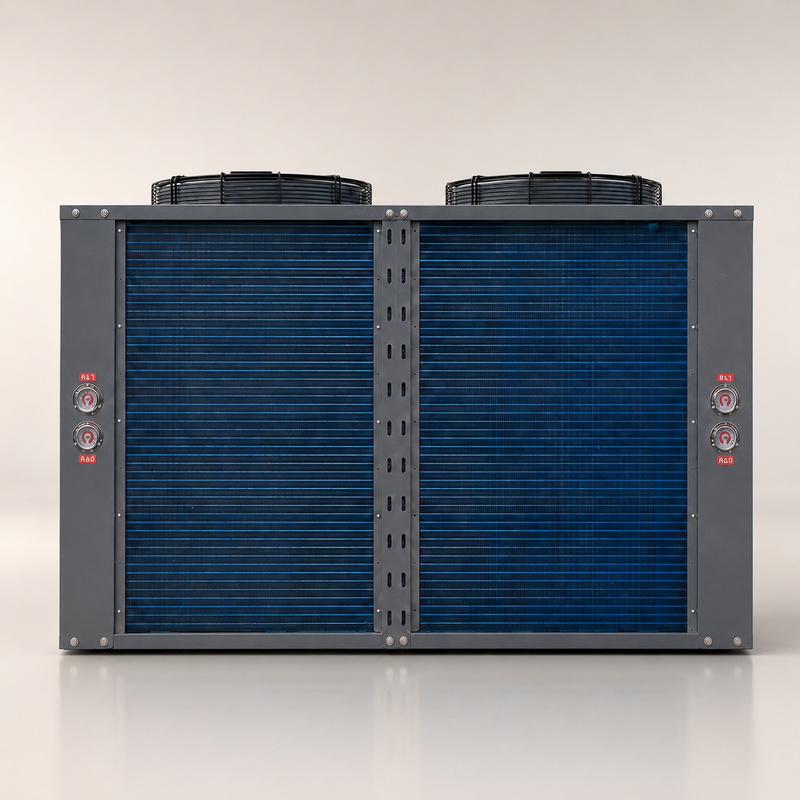

110 kW Commercial Air-Source Heat Pump for Hot Water

ZHIEN ZR-110/SN1-DT is a commercial hot-water heat pump for hotels, schools, hospitals and other buildings with central hot-water demand. Our team supports system selection and OEM/ODM requirements for distributors and project contractors.

Rated performance at stated test conditions

Catalogue condition	A	B
Outdoor dry/wet bulb	20/15°C	7/6°C
Water inlet/outlet	15/55°C	9/55°C
Heating capacity	110 kW	92 kW
Power input	23.9 kW	22.1 kW
COP	4.6	4.15

Compare heat pumps at the same test conditions. The 110 kW rating is not a guaranteed output at every ambient or water temperature. Final selection should account for winter design conditions and the required recovery time.

Configuration

Model: ZR-110/SN1-DT
Refrigerant: R410A
Power supply: 3N~380V/50Hz
Rated water flow: 19.5 m³/h
Dimensions (L × W × H): 2053 × 1080 × 1286 mm

Any 60 Hz configuration requires a separately confirmed datasheet. Confirm electrical compatibility and the applicable documentation for your destination before ordering.

Hotel and commercial hot-water system selection

Send the daily and peak-hour hot-water demand, incoming water temperature, required delivery temperature, storage tank volume, recovery time, project location, available power supply and quantity. For hotels, include room count and occupancy assumptions. Our engineers can review capacity, unit quantity and tank matching against the project load.

Procurement questions

Can I size a system by the 110 kW nameplate alone?
No. Review capacity at the site's design conditions, peak demand and usable storage volume before selecting a system.

Can you support OEM/ODM and project requirements?
We support branding, configuration discussions, technical documents and model selection. State your control, electrical and certification requirements so the final scope can be confirmed in the quotation.

How should backup capacity be considered?
Tell us your continuity requirements and maintenance constraints. Unit quantity and any standby provision should be assessed against the design load.
