188 kW Commercial Air Source Heat Pump for Hot Water | ZR-188/SN1-DT


Availability:



Inquire

The ZHIEN ZR-188/SN1-DT is a commercial air-source heat pump for large hot water projects. At outdoor dry/wet bulb 20/15°C and water inlet/outlet 15/55°C, it delivers 188 kW with 39.8 kW input and COP 4.72. At outdoor 7/6°C and water 9/55°C, the catalogue rates it at 158 kW with 38.2 kW input and COP 4.13. Confirm sizing against actual design conditions.

Model:
ZR-188/SN1-DT
Brand:
ZHIEN

Product Description

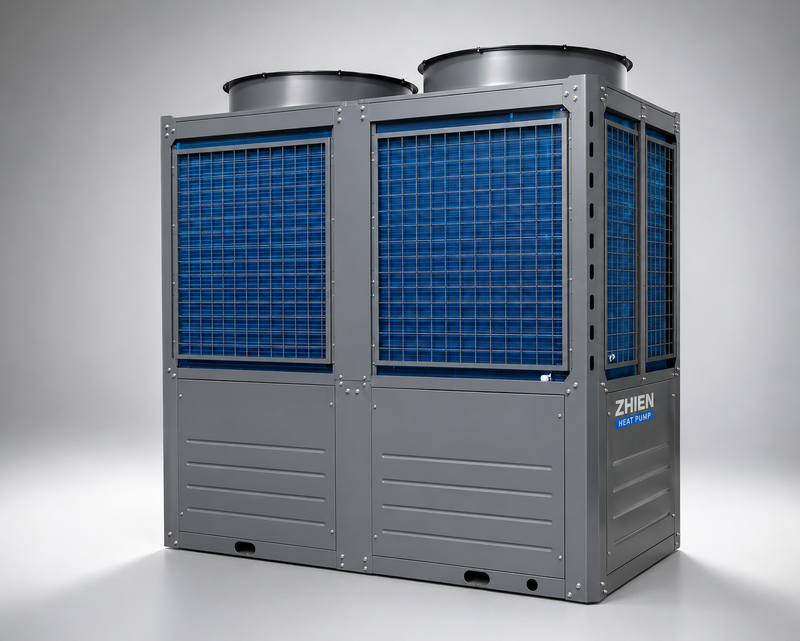

ZR-188/SN1-DT Commercial Air Source Hot Water Heat Pump

The ZHIEN ZR-188/SN1-DT is a commercial air source heat pump for hot water projects. Its rated heating capacity is 188 kW at condition A below. For hotel, hospital or other building hot water systems, selection must be checked against water demand, storage and site operating conditions.

Rated Hot Water Performance

Parameter	Condition A	Condition B
Outdoor dry / wet bulb temperature	20 / 15°C	7 / 6°C
Water inlet / outlet temperature	15 / 55°C	9 / 55°C
Heating capacity	188 kW	158 kW
Power input	39.8 kW	38.2 kW
COP	4.72	4.13

Ratings apply at the stated test conditions. Capacity and efficiency change with ambient and water temperatures. These ratings do not establish performance at other site conditions or the maximum operating temperature.

Equipment Specifications

Refrigerant: R410A.
Power supply: 3N~380V/50Hz.
Rated water flow: 34 m³/h.
Dimensions (L × W × H): 2313 × 1200 × 2280 mm.

Project Selection for the UAE and Saudi Arabia

For projects in the UAE, Saudi Arabia or another destination, confirm the required voltage, phase, frequency and site ambient operating range before ordering. The published specifications above are for the 50Hz version. A 60Hz requirement needs a separately confirmed configuration and performance datasheet.

To request equipment selection and a quotation, share:

Application, project country and installation location.
Daily hot water volume and peak demand or recovery time.
Incoming water temperature and required delivery temperature.
Storage tank capacity, circulation arrangement and available water flow.
Site design ambient conditions and power supply voltage, phase and frequency.
Required quantity, delivery date and any required project documentation.

Unit quantity should be selected from the project load and operating conditions. Where a project requires a water temperature above the listed rating point, ask our team to confirm a suitable model and configuration.

Related Models, Projects and OEM/ODM Support

Compare commercial heat pump models and explore OEM/ODM and project support.

See our Brazil hotel hot water project and São Paulo hospital heat pump project. These reference projects used ZDC70 equipment, a different model from the ZR-188/SN1-DT shown here.
