45 kW Low Ambient Inverter Air Source Heat Pump | ZDC-V50/SN1-DT


Availability:



Inquire

The ZHIEN ZDC-V50/SN1-DT is a variable-frequency air-source heat pump for low-ambient projects. The catalogue rates heating at 45 kW (outdoor 7°C, outlet water 45°C) and 30 kW (outdoor -12°C, outlet water 41°C). Rated cooling output is 34 kW at outdoor 35°C and outlet water 7°C. These ratings apply at their respective test conditions; request a project-specific selection and configuration.

Model:
ZDC-V50/SN1-DT
Brand:
ZHIEN

Product Description

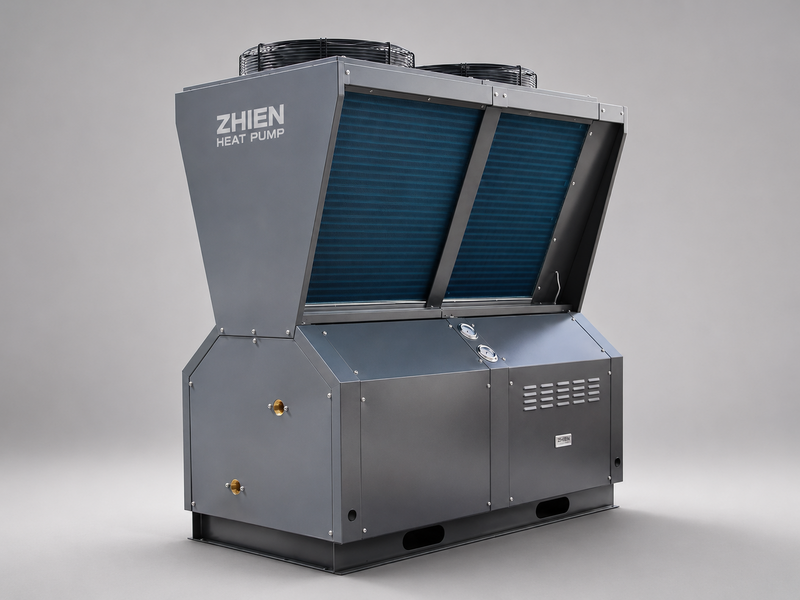

ZDC-V50/SN1-DT | Low Ambient Inverter Air-Source Heat Pump

Heating at outdoor A7°C / outlet water W45°C: capacity 45 kW; input 13.8 kW; COP 3.26.

Heating at outdoor A-12°C / outlet water W41°C: capacity 30 kW; input 12.6 kW; COP 2.38.

Cooling at outdoor A35°C / outlet water W7°C: capacity 34 kW; catalogue input 16 kW.

Refrigerant: R410A. Power supply: 3N~380V/50Hz. Dimensions (L × W × H): 850 × 850 × 1830 mm. Catalogue ambient range: -35°C to 45°C; capacity varies with conditions.

For an accurate proposal, share design outdoor temperature, water supply/return temperatures, building load and power supply. Ask for configuration-specific performance and 60Hz data where relevant.
