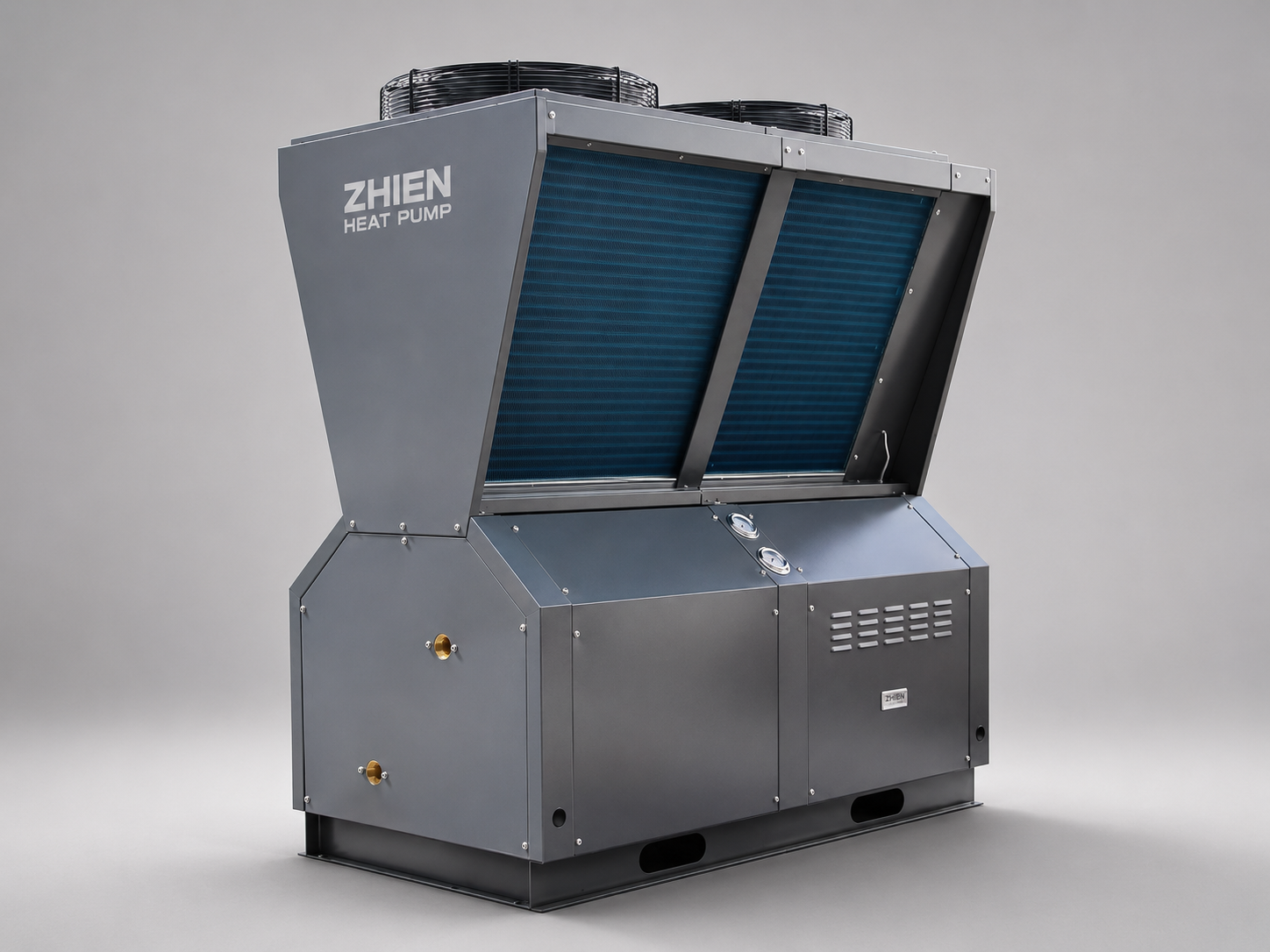

56 kW Commercial Air Source Heat Pump for Hot Water | ZR-56/SN1-DT


Availability:



Inquire

The ZHIEN ZR-56/SN1-DT is a commercial air-source heat pump for hot water projects. At outdoor dry/wet bulb 20/15°C and water inlet/outlet 15/55°C, it delivers 56 kW with 12.1 kW input and COP 4.63. At outdoor 7/6°C and water 9/55°C, the catalogue rates it at 45 kW with 11 kW input and COP 4.1. Select capacity for your project using its actual design conditions.

Model:
ZR-56/SN1-DT
Brand:
ZHIEN

Product Description

ZR-56/SN1-DT | Commercial Air-Source Hot Water Heat Pump

Rated hot-water performance, condition A: outdoor dry/wet bulb 20/15°C, water inlet/outlet 15/55°C — heating capacity 56 kW; power input 12.1 kW; COP 4.63.

Rated hot-water performance, condition B: outdoor dry/wet bulb 7/6°C, water inlet/outlet 9/55°C — heating capacity 45 kW; power input 11 kW; COP 4.1.

Refrigerant: R410A. Power supply: 3N~380V/50Hz. Rated water flow: 10.5 m³/h. Dimensions (L × W × H): 1500 × 820 × 1650 mm.

For project selection, share required daily hot-water volume, incoming water temperature, target water temperature, site climate and power supply. Ask ZHIEN for a 60Hz datasheet if needed.
