150 kW Low Ambient Inverter Air Source Heat Pump | ZDC-V150/SN1-DK


Availability:



Inquire

The ZHIEN ZDC-V150/SN1-DK is a large-capacity variable-frequency air-source heat pump for low-ambient projects. The catalogue rates heating at 150 kW (outdoor 7°C, outlet water 45°C) and 100 kW (outdoor -12°C, outlet water 41°C). Rated cooling output is 130 kW at outdoor 35°C and outlet water 7°C. These ratings apply at their respective test conditions; contact ZHIEN for project sizing.

Model:
ZDC-V150/SN1-DK
Brand:
ZHIEN

Product Description

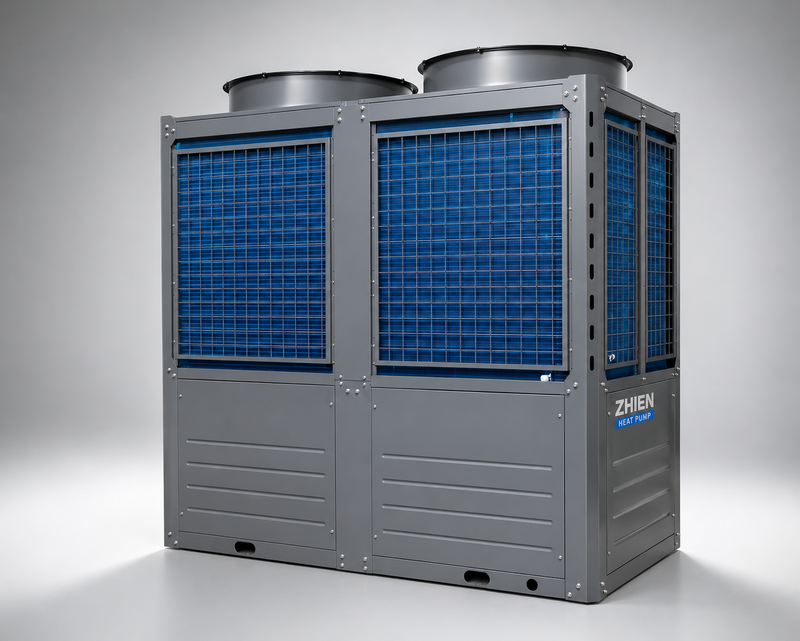

ZDC-V150/SN1-DK | Low Ambient Inverter Air-Source Heat Pump

Heating at outdoor A7°C / outlet water W45°C: capacity 150 kW; input 45.3 kW; COP 3.31.

Heating at outdoor A-12°C / outlet water W41°C: capacity 100 kW; input 42.1 kW; COP 2.37.

Cooling at outdoor A35°C / outlet water W7°C: capacity 130 kW; input 47.5 kW; cooling COP 2.73.

Refrigerant: R410A. Power supply: 3N~380V/50Hz. Dimensions (L × W × H): 2251 × 1200 × 2280 mm. Catalogue ambient range: -35°C to 45°C; capacity varies with conditions.

For a project proposal, share design outdoor temperature, supply and return water temperatures, heating/cooling load, operating schedule and power supply. Ask for separately confirmed 60Hz performance when needed.
